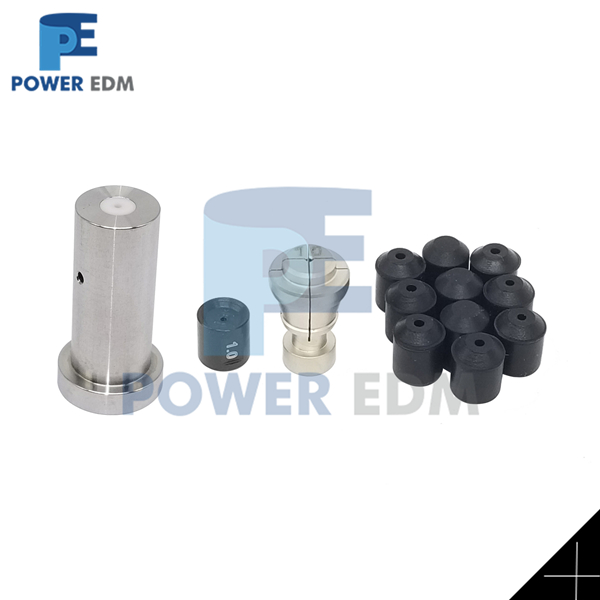

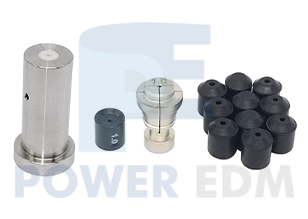

  • SET-Z140F Type F Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine
SET-Z140F Type F Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine

SET-Z140F Type F Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine

  • Ref No.: SET-Z140F-010
  • OEM No.: -
  • Size: OD=16/12mm,ID=0.10mm,L=31mm
  • Brand: Agie Charmilles
  • Product description: SET-Z140F Type F Pipe Guide Ceramic insert SET for Agie Charmilles Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • INQUIRY   EMAIL
Product Description:

Agie Charmilles Pipe guide

F type ceramic insert

Available ID=0.10mm-3.10mm

Body 1 OD=16.0mm

Body 2 OD=12.0mm

Tatal Length L=31mm


Model NO.

ID (mm)

L(mm

SET-Z140F-010

Φ0.10mm

L=31mm

SET-Z140F-015

Φ0.15mm

L=31mm

SET-Z140F-020

Φ0.20mm

L=31mm

SET-Z140F-025

Φ0.25mm

L=31mm

SET-Z140F-030

Φ0.30mm

L=31mm

SET-Z140F-040

Φ0.40mm

L=31mm

SET-Z140F-050

Φ0.50mm

L=31mm

SET-Z140F-060

Φ0.60mm

L=31mm

SET-Z140F-070

Φ0.70mm

L=31mm

SET-Z140F-080

Φ0.80mm

L=31mm

SET-Z140F-090

Φ0.90mm

L=31mm

SET-Z140F-100

Φ1.00mm

L=31mm

SET-Z140F-110

Φ1.10mm

L=31mm

SET-Z140F-120

Φ1.20mm

L=31mm

SET-Z140F-130

Φ1.30mm

L=31mm

SET-Z140F-140

Φ1.40mm

L=31mm

SET-Z140F-150

Φ1.50mm

L=31mm

SET-Z140F-160

Φ1.60mm

L=31mm

SET-Z140F-170

Φ1.70mm

L=31mm

SET-Z140F-180

Φ1.80mm

L=31mm

SET-Z140F-190

Φ1.90mm

L=31mm

SET-Z140F-200

Φ2.00mm

L=31mm

SET-Z140F-210

Φ2.10mm

L=31mm

SET-Z140F-220

Φ2.20mm

L=31mm

SET-Z140F-230

Φ2.30mm

L=31mm

SET-Z140F-240

Φ2.40mm

L=31mm

SET-Z140F-250

Φ2.50mm

L=31mm

SET-Z140F-260

Φ2.60mm

L=31mm

SET-Z140F-270

Φ2.70mm

L=31mm

SET-Z140F-280

Φ2.80mm

L=31mm

SET-Z140F-290

Φ2.90mm

L=31mm

SET-Z140F-300

Φ3.00mm

L=31mm

SET-Z140F-310

Φ3.10mm

L=31mm
