Agie Charmilles Drill Guide

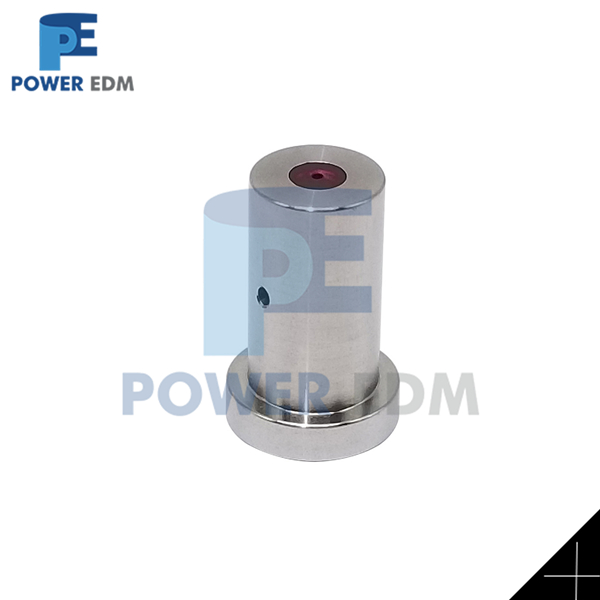

  • Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine

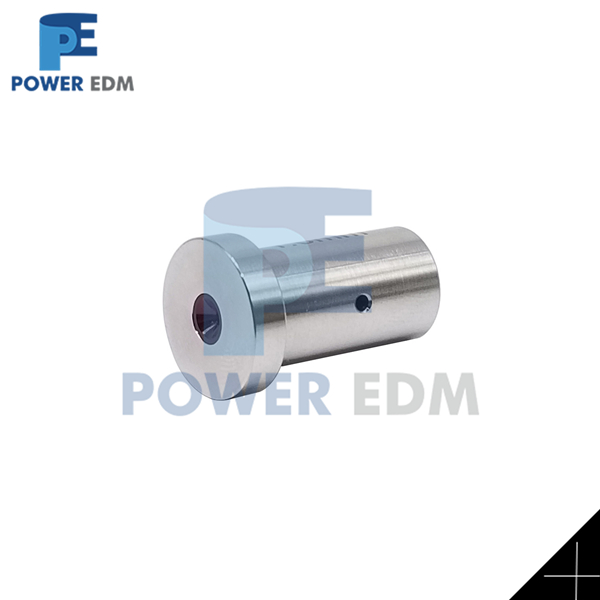

  • Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine

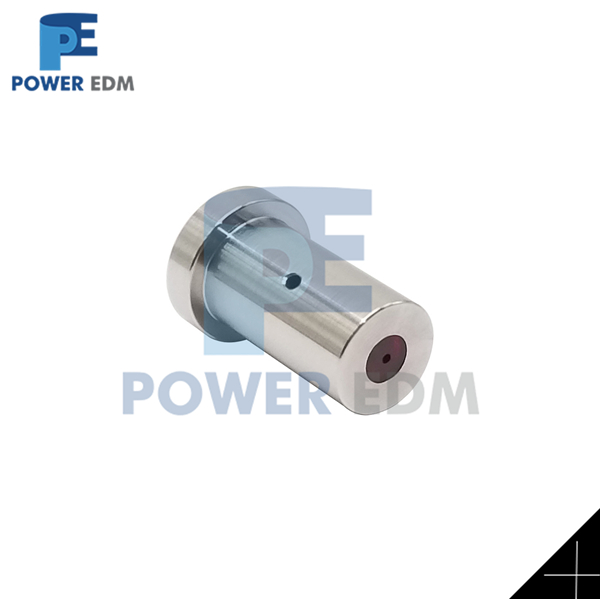

  • Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine
Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling MechineZ140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling MechineZ140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine

Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine

  • Ref No.: Z140E-010
  • OEM No.: -
  • Size: OD=16/12mm,ID=0.10mm,L=25mm
  • Brand: Agie Charmilles
  • Product description: Z140E Type E Pipe Guide Ruby insert for Agie Charmilles Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • INQUIRY   EMAIL
Product Description:

Agie Charmilles Pipe guide

E type ruby insert

Available ID=0.10mm-3.00mm

Body 1 OD=16.0mm

Body 2 OD=12.0mm

Tatal Length L=25mm


Model NO.

ID (mm)

L(mm

Z140E-010

Φ0.10mm

L=25mm

Z140E-015

Φ0.15mm

L=25mm

Z140E-020

Φ0.20mm

L=25mm

Z140E-025

Φ0.25mm

L=25mm

Z140E-030

Φ0.30mm

L=25mm

Z140E-040

Φ0.40mm

L=25mm

Z140E-050

Φ0.50mm

L=25mm

Z140E-060

Φ0.60mm

L=25mm

Z140E-070

Φ0.70mm

L=25mm

Z140E-080

Φ0.80mm

L=25mm

Z140E-090

Φ0.90mm

L=25mm

Z140E-100

Φ1.00mm

L=25mm

Z140E-110

Φ1.10mm

L=25mm

Z140E-120

Φ1.20mm

L=25mm

Z140E-130

Φ1.30mm

L=25mm

Z140E-140

Φ1.40mm

L=25mm

Z140E-150

Φ1.50mm

L=25mm

Z140E-160

Φ1.60mm

L=25mm

Z140E-170

Φ1.70mm

L=25mm

Z140E-180

Φ1.80mm

L=25mm

Z140E-190

Φ1.90mm

L=25mm

Z140E-200

Φ2.00mm

L=25mm

Z140E-210

Φ2.10mm

L=25mm

Z140E-220

Φ2.20mm

L=25mm

Z140E-230

Φ2.30mm

L=25mm

Z140E-240

Φ2.40mm

L=25mm

Z140E-250

Φ2.50mm

L=25mm

Z140E-260

Φ2.60mm

L=25mm

Z140E-270

Φ2.70mm

L=25mm

Z140E-280

Φ2.80mm

L=25mm

Z140E-290

Φ2.90mm

L=25mm

Z140E-300

Φ3.00mm

L=25mm

Inquiry:
