Agie Charmilles Drill Guide

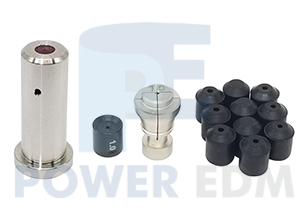

  • SET-Z140D-R Type D Pipe Guide Ruby insert SET for Agie Charmilles Small Hole Drilling Mechine
SET-Z140D-R Type D Pipe Guide Ruby insert SET for Agie Charmilles Small Hole Drilling Mechine

SET-Z140D-R Type D Pipe Guide Ruby insert SET for Agie Charmilles Small Hole Drilling Mechine

  • Ref No.: SET-Z140D-010-R
  • OEM No.: -
  • Size: OD=16/12mm,ID=0.10mm,L=35mm
  • Brand: Agie Charmilles
  • Product description: SET-Z140D-R Type D Pipe Guide Ruby insert SET for Agie Charmilles Small Hole Drilling Mechine,EDM Consumables,Power EDM
  • INQUIRY   EMAIL

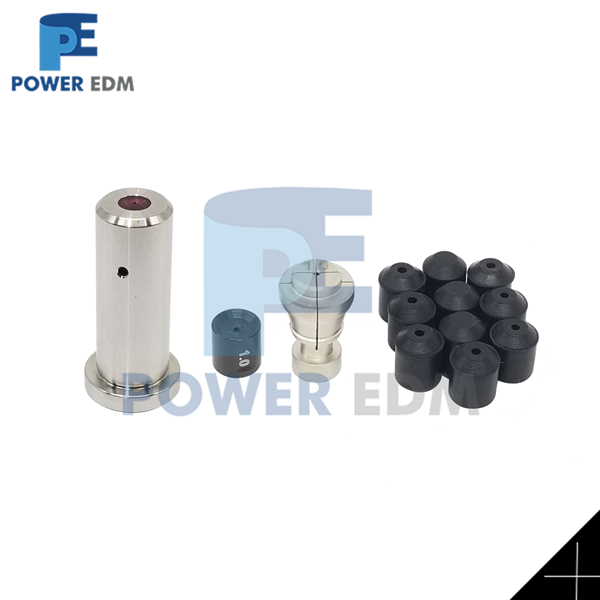

Product Description:

Agie Charmilles Pipe guide

D type ruby insert SET

Available ID=0.10mm-3.20mm

Body 1 OD=16.0mm

Body 2 OD=12.0mm

Tatal Length L=35mm


Model NO.

ID (mm)

L(mm)

SET-Z140D-010-R

Φ0.10mm

L=35mm

SET-Z140D-015-R

Φ0.15mm

L=35mm

SET-Z140D-020-R

Φ0.20mm

L=35mm

SET-Z140D-025-R

Φ0.25mm

L=35mm

SET-Z140D-030-R

Φ0.30mm

L=35mm

SET-Z140D-040-R

Φ0.40mm

L=35mm

SET-Z140D-050-R

Φ0.50mm

L=35mm

SET-Z140D-060-R

Φ0.60mm

L=35mm

SET-Z140D-070-R

Φ0.70mm

L=35mm

SET-Z140D-080-R

Φ0.80mm

L=35mm

SET-Z140D-090-R

Φ0.90mm

L=35mm

SET-Z140D-100-R

Φ1.00mm

L=35mm

SET-Z140D-110-R

Φ1.10mm

L=35mm

SET-Z140D-120-R

Φ1.20mm

L=35mm

SET-Z140D-130-R

Φ1.30mm

L=35mm

SET-Z140D-140-R

Φ1.40mm

L=35mm

SET-Z140D-150-R

Φ1.50mm

L=35mm

SET-Z140D-160-R

Φ1.60mm

L=35mm

SET-Z140D-170-R

Φ1.70mm

L=35mm

SET-Z140D-180-R

Φ1.80mm

L=35mm

SET-Z140D-190-R

Φ1.90mm

L=35mm

SET-Z140D-200-R

Φ2.00mm

L=35mm

SET-Z140D-210-R

Φ2.10mm

L=35mm

SET-Z140D-220-R

Φ2.20mm

L=35mm

SET-Z140D-230-R

Φ2.30mm

L=35mm

SET-Z140D-240-R

Φ2.40mm

L=35mm

SET-Z140D-250-R

Φ2.50mm

L=35mm

SET-Z140D-260-R

Φ2.60mm

L=35mm

SET-Z140D-270-R

Φ2.70mm

L=35mm

SET-Z140D-280-R

Φ2.80mm

L=35mm

SET-Z140D-290-R

Φ2.90mm

L=35mm

SET-Z140D-300-R

Φ3.00mm

L=35mm

SET-Z140D-310-R

Φ3.10mm

L=35mm

SET-Z140D-320-R

Φ3.20mm

L=35mm

-
