  • Ref No.: Z140L100-D3.5-C2-010
  • OEM No.: -
  • Size: D5/3.5/2.0/5.6mm x 100mmL, EX+70mmL
  • Brand: Small Hole Drilling
  • Product description: Z140L100-D3.5-C2 Drilling Ceramic Pipe Guide For Aero-engine Components,EDM Consumables,Power EDM
  • INQUIRY   EMAIL
Product Description:

Drilling Ceramic Pipe Guide

For Aero-engine components

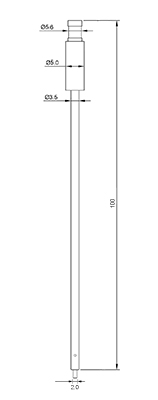

Z140L Type Extension L70mm D3.5mm

Available ID=0.1mm-1.20mm

Body 1 OD=5.0mm

Body 2 OD=3.5mm

Body Ceramic  OD=2.0mm

Shaft OD=5.6mm

Extension Length L=70mm

Total L=100mm

Model NO.

ID (mm)

Total L

Z140L100-D3.5-C2-010

Φ0.10mm

100mm

Z140L100-D3.5-C2-015

Φ0.15mm

100mm

Z140L100-D3.5-C2-020

Φ0.20mm

100mm

Z140L100-D3.5-C2-025

Φ0.25mm

100mm

Z140L100-D3.5-C2-030

Φ0.30mm

100mm

Z140L100-D3.5-C2-035

Φ0.35mm

100mm

Z140L100-D3.5-C2-040

Φ0.40mm

100mm

Z140L100-D3.5-C2-045

Φ0.45mm

100mm

Z140L100-D3.5-C2-050

Φ0.50mm

100mm

Z140L100-D3.5-C2-055

Φ0.55mm

100mm

Z140L100-D3.5-C2-060

Φ0.60mm

100mm

Z140L100-D3.5-C2-065

Φ0.65mm

100mm

Z140L100-D3.5-C2-070

Φ0.70mm

100mm

Z140L100-D3.5-C2-075

Φ0.75mm

100mm

Z140L100-D3.5-C2-080

Φ0.80mm

100mm

Z140L100-D3.5-C2-085

Φ0.85mm

100mm

Z140L100-D3.5-C2-090

Φ0.90mm

100mm

Z140L100-D3.5-C2-095

Φ0.95mm

100mm

Z140L100-D3.5-C2-100

Φ1.00mm

100mm

Z140L100-D3.5-C2-105

Φ1.05mm

100mm

Z140L100-D3.5-C2-110

Φ1.10mm

100mm

Z140L100-D3.5-C2-115

Φ1.15mm

100mm

Z140L100-D3.5-C2-120

Φ1.20mm

100mm

Notes:

Available Extended sizesSpecial sizes can be customized according to customer needs.

Please contact with our Sales if you have speical sizes.
