Pipe guide

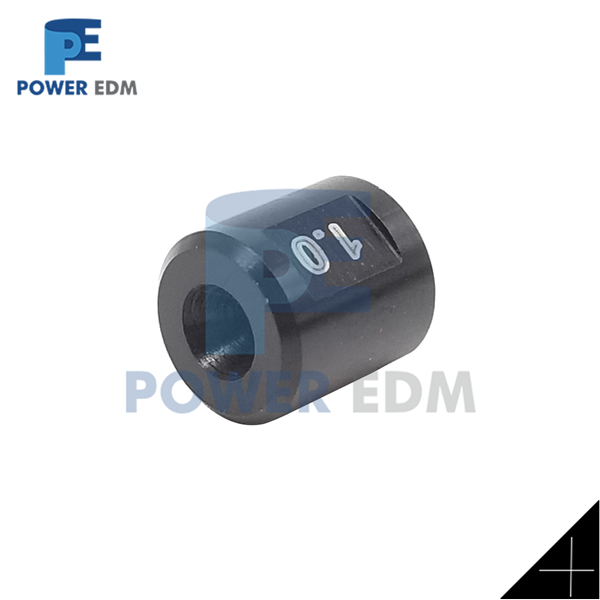

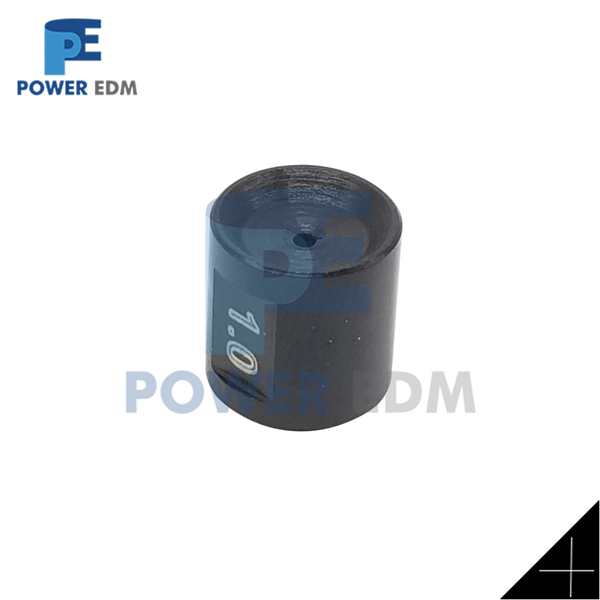

  • TS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1C
  • TS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1C
TS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1CTS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1C

TS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1C

  • Ref No.: TS-PG-040
  • OEM No.: 0223998 3563390
  • Size: OD=7.84mm,ID=0.40mm,L=8.5mm
  • Brand: Sodick
  • Product description: TS-PG 0223998 3563390 Pipe Guide for TS Guide Set K1C,EDM Consumables,Power EDM
  • INQUIRY   EMAIL
Product Description:

Pipe guide

Available ID=0.10mm-4.10mm

Body OD=7.84mm

Pipe Height H=8.5mm



Model NO.

ID (mm)

Diameter(mm

OEM NO.

TS-PG-010

Φ0.10mm

-

-

TS-PG-015

Φ0.15mm

-

-

TS-PG-020

Φ0.20mm

-

-

TS-PG-025

Φ0.25mm

-

-

TS-PG-030

Φ0.30mm

-

-

TS-PG-040

Φ0.40mm

0.15~0.30mm

0223998

3563390

TS-PG-050

Φ0.50mm

0.40~0.45mm

0223999

3563391

TS-PG-060

Φ0.60mm

0.50~0.55mm

0224000

3563392

TS-PG-070

Φ0.70mm

0.60~0.65mm

0224001

3563393

TS-PG-080

Φ0.80mm

0.70~0.75mm

0224002

3563394

TS-PG-090

Φ0.90mm

0.80~0.85mm

0224003

3563395

TS-PG-100

Φ1.00mm

0.90~0.95mm

0224004

3563396

TS-PG-110

Φ1.10mm

1.00~1.05mm

0224005

3563397

TS-PG-120

Φ1.20mm

1.10~1.15mm

0224006

3563398

TS-PG-130

Φ1.30mm

1.20~1.25mm

0224007

3563399

TS-PG-140

Φ1.40mm

1.30~1.35mm

0224008

3563400

TS-PG-150

Φ1.50mm

1.40~1.45mm

0224009

3563401

TS-PG-160

Φ1.60mm

1.50~1.55mm

0224010

3563402

TS-PG-170

Φ1.70mm

1.60~1.65mm

0224011

3563403

TS-PG-180

Φ1.80mm

1.70~1.75mm

0224012

3563404

TS-PG-190

Φ1.90mm

1.80~1.85mm

0224013

3563405

TS-PG-200

Φ2.00mm

1.90~1.95mm

0224014

3563406

TS-PG-210

Φ2.10mm

2.00~2.05mm

0224015

3563407

TS-PG-220

Φ2.20mm

2.10~2.15mm

0224016

3563408

TS-PG-230

Φ2.30mm

2.20~2.25mm

0224017

3563409

TS-PG-240

Φ2.40mm

2.30~2.35mm

0224018

3563410

TS-PG-250

Φ2.50mm

2.40~2.45mm

0224019

3563411

TS-PG-260

Φ2.60mm

2.50~2.55mm

0224020

3563412

TS-PG-270

Φ2.70mm

2.60~2.65mm

0224021

3563413

TS-PG-280

Φ2.80mm

2.70~2.75mm

0224022

3563414

TS-PG-290

Φ2.90mm

2.80~2.85mm

0224023

3563415

TS-PG-300

Φ3.00mm

2.90~2.95mm

0224024

3563416

TS-PG-310

Φ3.10mm

3.00~3.05mm

0224025

3563417

TS-PG-320

Φ3.20mm

3.10~3.15mm

-

TS-PG-330

Φ3.30mm

3.20~3.25mm

-

TS-PG-340

Φ3.40mm

3.30~3.35mm

-

TS-PG-350

Φ3.50mm

3.40~3.45mm

-

TS-PG-360

Φ3.60mm

3.50~3.55mm

-

TS-PG-410

Φ4.00mm

4.00~4.05mm

-
